W 232 Double and Single


Profile width 75 mm double rail frame, 92,5 mm single rail frame and 50 mm sliding system sash profile
Number of chambers 3
Profile class B Class (TS EN 12608-1)
Seal Type The insulated bristle wick system
Seal Type and Color TPE - Gray / Black
Glass thickness (mm) 4 - 6, 20, 24 mm

Ant. Grey ST 508

Ant. Grey AS 508

Dark Black AS 520

Swamp Oak ST 503

Grey ST 507

Natural Oak HR 570

Grey Sand AS 509

Grey Sand ST 509

Mahogany ST 504

Silver Teak SB 513

Ant. Grey ST 516

Silver Brush SB 518

White ST 517

Dark Black ST 520

P.Golden Oak ST 540

P.Dark Oak ST 541

W 232

just for your home

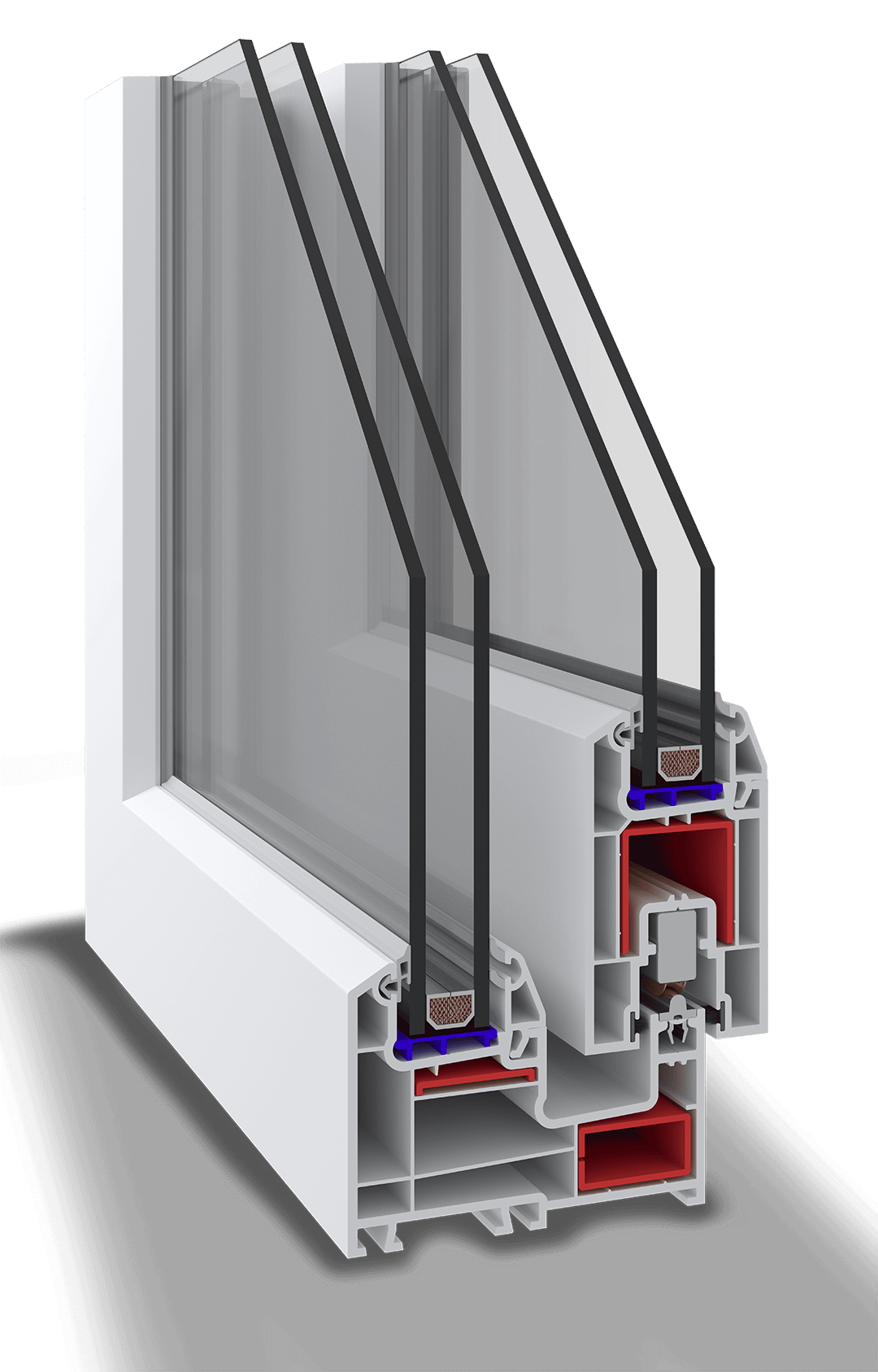

75 mm profile width with double railed frame and 92,5 mm width single rail alternative frame and 50 mm width of sash profile.

Perfect thermal, sound and water isolation because of the 3 chambers system.

The medium locked sash with a seal system.

Application of single glaze 4-6 mm and insulating glass 20, 24 mm by grey sealed glazing beads in different thickness.

Application with roller shutter and without roller shutter choices.

Wooden designed laminated applications.
