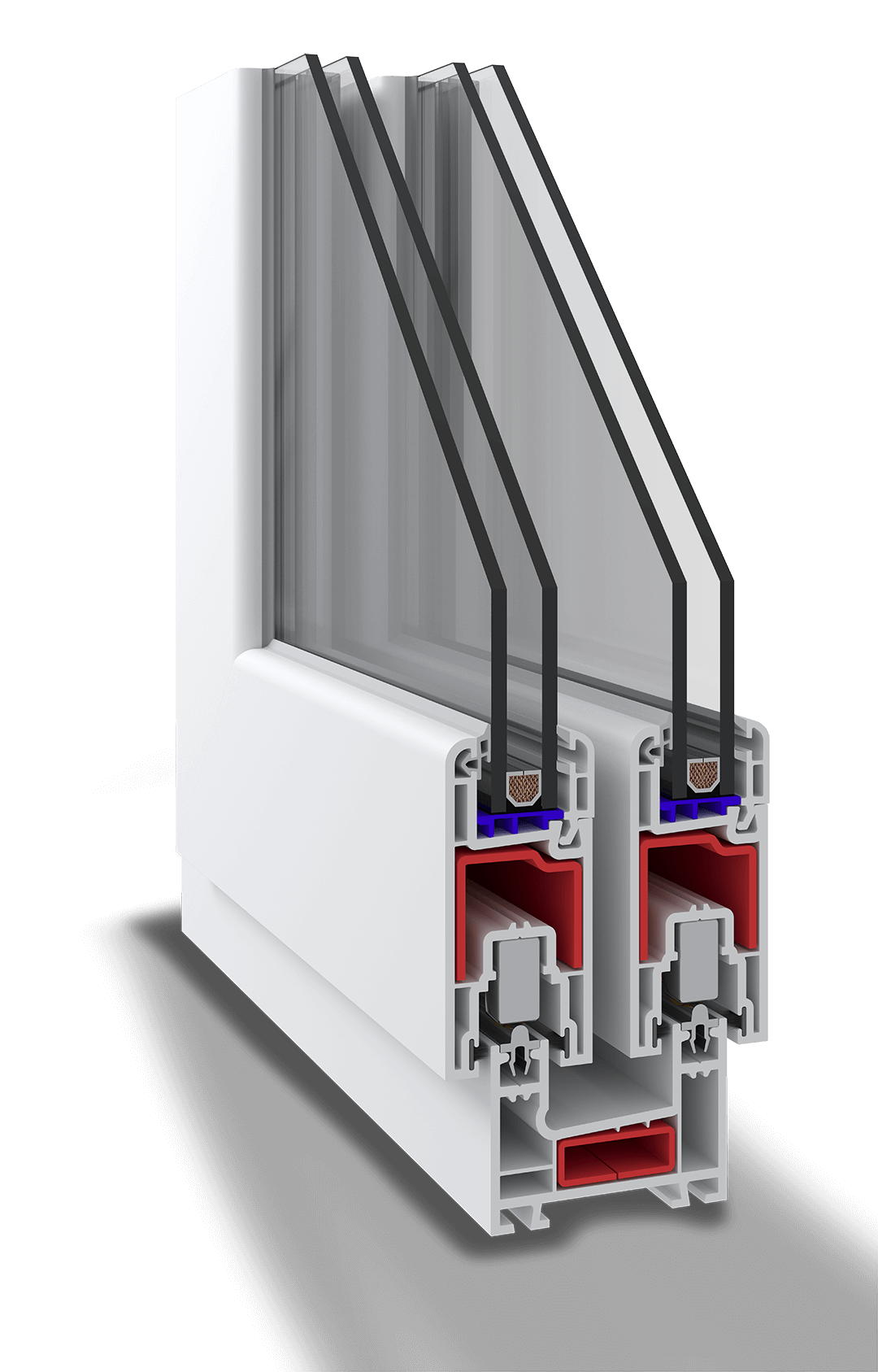

W 222 Rail Series


Profile width 63 mm double rail frame, 111 mm triple rail frame and 38 mm sliding system sash profile
Number of chambers 3
Profile class B Class (TS EN 12608-1)
Seal Type The installed bristle wick system
Glass thickness (mm) 4-6, 15, 17 mm

Ant. Grey ST 508

Ant. Grey AS 508

Dark Black AS 520

Swamp Oak ST 503

Grey ST 507

Natural Oak HR 570

Grey Sand AS 509

Grey Sand ST 509

Mahogany ST 504

Silver Teak SB 513

Ant. Grey ST 516

Silver Brush SB 518

White ST 517

Dark Black ST 520

P.Golden Oak ST 540

P.Dark Oak ST 541

W 222

just for your home

63 mm double rail, 111 mm triple rail, 38 mm sliding sash profile.

Perfect thermal, sound and water isolation because of the 3 chambers system.

Application of single glaze 4-6 mm and installation glass 15, 17 mm by grey sealed glazing beads in different thickness.

Application with roller shutter and without roller shutter.

Wooden designed laminated applications.
